HYBRID SOLAR INVERTER with build-in solar charge controller 300W to 5KW manufacturer from China Yitai Electronics Co.,LTD

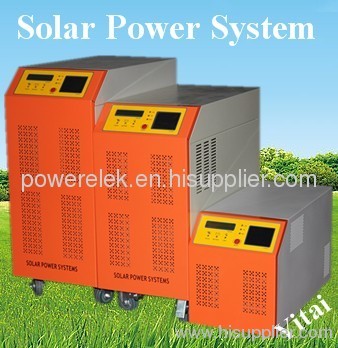

HYBRID SOLAR INVERTER with build-in solar charge controller 300W to 5KW

Place of Origin:

Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Pure sinewave inverter with build-in solar charge controller,We recommend this Hybrid solar inverter for homes, schools, clinics and other off-grid

For more info.Welcome to inquiry me for more details.

Contacts: Miss Joanna

MSN: powerelek(at)hotmail(.)com

Email: sales(at)powerelek(.)com

Skype: powereleksales

Tel: 0086-755-29480680

1,Specification:

LN-S/Model:LN-S		30012	50012	100048	151048	201048	252048	302048	402096	502096
Rated power(W)		300	500	1000	1500	2000	2500	3000	4000	5000
Rated DC voltage(V)		12V	12V	48V	48V	48V	48V	48V	96V	96V
AC Input	Input voltage(V)	165-275V			165-275V
Line input	DC Charge current(A)	15A			20A
Inverter output	Output voltage(V)	220VAC±5%			220VAC±5%
	Output frequency	50Hz/60Hz±1%			50Hz/60Hz±1%
	Wave form	Pure Sine Wave,THD<4%(Full Load)
Solar input	Maximum voltage((V)	21	21	84	84	84	84	84	168	168
	Rated power(Wp)	360	360	1000	1500	2000	3000	3000	5000	5000
	Solar Charage current(A)	30	30	20	30	40	60	60	60	60
Battery	Over charge protective voltage(V)	14.5	14.5	58	57.2	57.2	57.2	57.2	114.4	114.4
	Over charge recover voltage(V)	14	14	56	54.8	54.8	54.8	54.8	109.6	109.6
	Constant charge voltage(V)	13.6	13.6	54.4	54	54	54	54	108	108
	Over discharge alarm voltage(V)	11	11	44	40	40	40	40	80	80
Others	Voltage drop between solar module and battery(V)	≤0.3V
	Voltage drop between loads and battery(V)	≤0.15V
	Start speed of cooling fan	55℃
	Environment Humidity	0-90% Maximum,non-condensable
	Protective Functions	Protection against anti-charge at night;Battery over charge/ over discharge protection; Joint-reversed of solar modules
	Control method	PWM
Size :DWH(mm)		370122188			448230440			450220570
Package size:DWH(mm)		445195260			540290630			540290630
Net.Weight./Gross.Weight.(kg)		6.6/7.5	8.7/10	16.5/18.4	25/28	32/35	40/43	48/55	60/68	62/70

above parameters, due to technical improvements resulting in slight differences with the actual parameters, subject to the actual product description. In addition,Specification can be adjustable as to customer special requirements.
