300W on grid power system solar power system solar inverter from China manufacturer

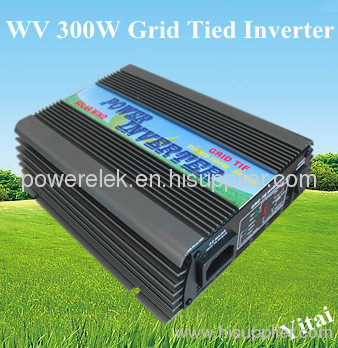

300W on grid power system solar power system solar inverter

Place of Origin:

Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YT-WV-300

Output Type: Single

Brand Name: YITAI

Weight: 1.8KG

Output Voltage: AC220V/AC110V

Type: DC/AC Inverters

Output Power: 201 - 300W

Size: 21 x 16.5 x5.3CM

Input Voltage: DC22V~DC60V

Easy operation:connect your solar panel(DC22V~DC60V) to this grid tie inverter and plug the AC power to your home power socket.

For more info.Welcome to inquiry me for more details.

Contacts: Miss Joanna

MSN: powerelek(at)hotmail(.)com

Email: sales(at)powerelek(.)com

Skype: powereleksales

Tel: 0086-755-29480680

1,Voltage input(22-60VDC)

DC input limit

Input voltage range: 22V to 60V

Solar Panel: Recommend using the power more than 30W.

A) Reference voltage is 18V's solar panel. Suggest using two pieces of solar panel in series.

B) Reference voltage is 36V's solar panel.

C) Reference voltage is 48V's solar panel.

Recommend using multiple solar panels. Solar panel in series will result in high-input voltage which will exceed the working voltage range of the inverter.

Wind turbine system: Rated voltage 24VDC, maximum voltage 48VDC.

AC ouput:

A) Voltage range of the inverter whose output is 220V AC.: 180V - 260V,50HZ

B) Voltage range of the inverter whose output is 110V AC.: 90V - 140V,60HZ

2,High-frequency two-way and one-way grid function

1\ High frequency direct modulation, AC half wave synthesis

2\ Two-way grid means: Load consume directly. And can reverse AC current transmission.

3\ One-way grid means: Load consume directly. And banned reverse AC current transmission.

3,Kinds of frequency output function.

It can apply to 50Hz and 60Hz frequency of AC.

Frequency range: 45Hz ~53Hz/55Hz~ 63Hz

4,directly connected to the solar panels (do not need to connect the battery)

Using precise Dynamic differential pressure type MPPT function, APL functions, the inverter automatically adjust the solar panels of maximum output power,simply connect the solar panel to the grid inverters. Do not need to connect the battery.

1\ Differential pressure type MPPT: 0.1 V accuracy

2\ Power lock: 10W (AC output)

5,Notes

---Non-professionals do not disassemble. Only qualified personnel may repair this product.

---Please install inverter in the low humidity and well-ventilated place to avoid the inverter over-heating, and clear around the inflammable and explosive materials.

---When using this product, avoid children touching, playing, to avoid electric shock.

---Recommended Maximum DC input 4AWG cable capable of handling more than 50A of the

cable size.

---Optimal length of the DC input line 8M or less, long cable will allow solar panels to the inverter

DC voltage drop caused by wear and tear.

---Connected to a power outlet to provide AC.

---Connected solar panels, battery DC input DC power supply.

6,Accessories for product

One standard AC wire

One user manual

Specification as below:

YT-WV Grid-series models	300Watt
Recommend use solar panels	400Wp
DC MAX input current	20A
AC MAX output power	300Watt
DC MAX Open-circuit input-voltage	100VDC
DC input voltage range	22~60VDC
MAX output power factor	0.99
DC input Reverse voltage protection	FUSE
AC output voltage range	(120V versions:90~140VAC)(230V versions:180~260VAC)
AC frequency range	45-53Hz/55-63Hz
Output current total harmonic distortion	THDIAC <5%
AC Phase	<0.5%
Islanding protection	VAC;f AC
Output short circuit protection	Current-limiting
Show	LED mode:power instruction;voltage instruction;AC frequency instruction;over-voltage instruction
Installation	Wall hanging
Cooling	Fan
Communication way	l 60KHz modulation,power line carrier-current communication
Standby Power	<1W
Night Power	<1W
Ambient temperature range	-25 ℃~60℃
Humidity	0~99%(Indoor Type Design)
Waterproof	Indoor Type Design
Electromagnetic Compatibility	EN50081.part1 EN50082.part1
Power System Disturbance	EN61000-3-2 EN60950-1
Network test	DIN VDE 1026

Packing and weight

N.W(Each inverter)	1.3KG(300W/500W)
G.W(Each inverter)	1.8KG(300W/500W)
Each inverter size (L x W x H)	21 x 16.5 x5.3CM
Inner carton size(L x W x H)	30x20.3x11.3CM
Master carton size(L x W x H)	42x31.5x36.5CM(6 pieces/carton)
N.W(Outer packing)	10.8KG(300W/500W )
G.W(Outer packing)	11.5KG(300W/500W )
AC power cord length	1.8M
